Chromium (Cr) Metal

Chromium is a  lustrous, brittle, hard silver-gray metal. It can be highly polished. It does not tarnish in air, when heated it borns and forms the green chromic oxide. Chromium is unstable in oxygen, it immediately produces a thin oxide layer that is impermeable to oxygen and protects the metal below. Applications --- Chromium primary uses are in alloys such as stainless steel, in chrome plating and in metal ceramics. Chromium plating was once widely used to give steel a polished silvery mirror coating. Chromium is used in metallurgy to impart corrosion resistance and a shiny finish; as dyes and paints, its salts colour glass an emerald green and it is used to produce synthetic rubies; as a catalyst in dyeing and in the tanning of leather; to make molds for the firing of bricks. Chromium (IV) oxide (CrO2) is used to manufacture magnetic tape.

Basic Information

Name: Chromium
Symbol: Cr
Atomic Number: 24
Atomic Mass: 51.9961 amu
Melting Point: 1857.0 ¡ãC (2130.15 ¡ãK, 3374.6 ¡ãF) Boiling Point: 2672.0 ¡ãC (2945.15 ¡ãK, 4841.6 ¡ãF)
Number of Protons/Electrons: 24
Number of Neutrons: 28
Classification: Transition Metal
Crystal Structure: Cubic
Density @ 293 K: 7.19 g/cm3 Color: gray
HIP high pure chromium sputtering_ target_rectangle

Chromium (Cr) Sputtering Targets

Purity--- 99.5%,99.9%,99.95%(HIP, high pure, high density)

Dimension --- Discs, Plate, Step (Dia ¡Ü300mm,,  Thickness ¡Ý1mm)                           Rectangle, Sheet,  Step (Length ¡Ü600mm, Width ¡Ü250mm, Thickness ¡Ý1mm)

                          Tube( Diameter< 300mm,  Thickness >2mm, rotary target, plasma spray on steel tube )

Application --- excellent adhering film on numerous surface, Deposit on glass for printed circuit base with SiO for resistor films. Also it be used for protecting  film, optic film.

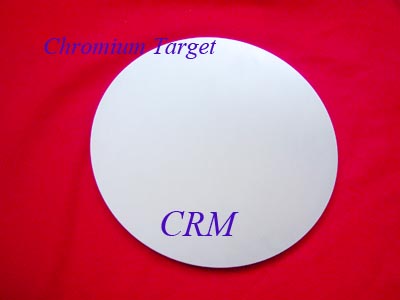

Disk Chromium spttering target
 high pure HIP disk chromium sputtering target Big DIA chromium sputtering target_ Cr target Chromium sputtering target with Copper circle Chromium sputtering target with hole
chromium granuale,chromium irregular piece,99.9%

Chromium (Cr) Evaporation Materials

Melting Point--- 1857.0 ¡ãC ;

Boiling Point--- 2672.0 ¡ãC;
Density @ 293 K---
7.19 g/cm3 ; Color---Silver gray;

Purity--- 99.5%,99.9%,99.95%

Shape---Irregular pieces, Granules, Flakes, Custom-Made
Dimension--- Irregular pieces (1-3mm, 4-10mm); Powder (40mesh, 60mesh, 100mesh, 200mesh);                          Wire(Dia0.8mm-Dia1.2mm); Custom-Made Evaporation Temperature--- 1430℃ Application --- excellent adhering film on numerous surface, Deposit on glass for printed circuit base with SiO for resistor films. Also it be used for protecting  film.

Chromium (Cr) Metal (High pure Chromium Metal)

Color---Silver gray;

Purity--- 99.4%,99.5%,99.7%

Shape---Irregular Pieces, Granules, Powder

Application --- Raw material of Cr product, coating material,display,semiconductor coating material, sputtering targets

Electrolytic Chromium Metal

Color---Silver gray;

Purity--- 99.95%,99.99%,99.995%

Shape--- Flakes, Powder, Spicule

Application --- Raw material of Cr product, coating material,display,semiconductor coating material, sputtering targets
