Yttrium Aluminum (YAl) Alloy Sputtering Targets

Your current location :Home > Yttrium Aluminum (YAl) Alloy

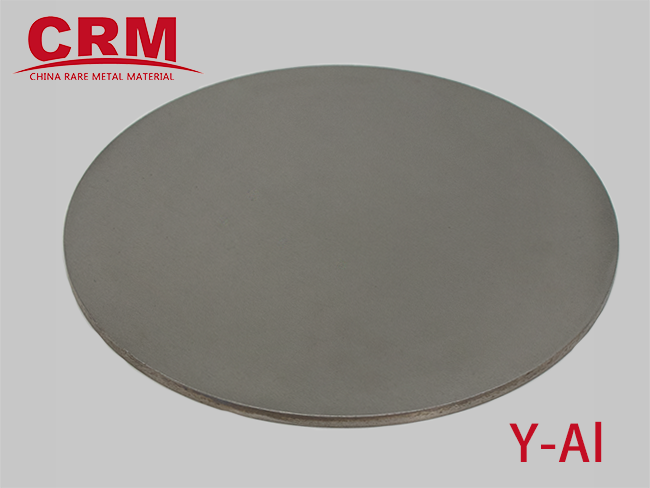

Yttrium Aluminum (YAl) Alloy Sputtering Targets YAl_AllOy_tgt

Purity: 99.9%

Manufacturing Process

Melting ---> Casting ---> Forging (Rolling) ---> Machining ---> Checking ---> Packing

Speciafication (Max)

Planar circular target: Dia ≤480mm, Thickness ≥1mm

Planar Rectangle: Length ≤1800mm, Width ≤300mm, Thickness ≥1mm)

Totary Target: Diameter≤ 200mm, Thickness >2mm)

Application --- Primary used as decorate thin film , hard thin film　

We manufacture yttrium aluminum by direct way, so the fee is lower then melting. There are two advantage as a additive when melting aluminum alloy, yttrium allminum alloy is cheaper , alloy is easier storing and shipping then yttrium metal. Yttrium aluminum alloy are famous for usage of melting Aluminum alloy. As a rare earth metal-- yttrium can be composite with oxide ,sulphur, nitrogen, arsenic and be refractory compound. Then they will be sediment and be got rid of. About the usage and other question ,please contact with CRM's sale engineer.

Our Advantage of Yttrium Aluminum (YAl) Alloy Sputtering Targets

China rare metal material co.,limited (CRM) is an experter in manufacture Yttrium Aluminum (YAl) Alloy Sputtering Targets as evaporation material . AllYttrium Aluminum (YAl) Alloy Sputtering Targets are manufacture by programs with with the highest possible density and smallest possible average grain size..

CRM material co.,limited is specialized in making sputtering targets. We have many raw material compounds line, such as semiconductor line, chemical compounds line, metallurgy line, powder milling line, etc. Moreover, we introduced many advanced technology and equipments from related companies at home and aborad. We also have an experienced research team who have developed many new and special pellets, and also successfully made many trial orders and received many customers satisfaction and long-term friendship.

All Yttrium Aluminum (YAl) Alloy Sputtering Targets are analyzed using best detection means including chemical analysis, Crystal phase microscope, x ray diffraction(XRD), X-Ray Fluorescence (XRF), Glow Discharge Mass Spectrometry (GDMS), and Inductively Coupled Plasma (ICP).

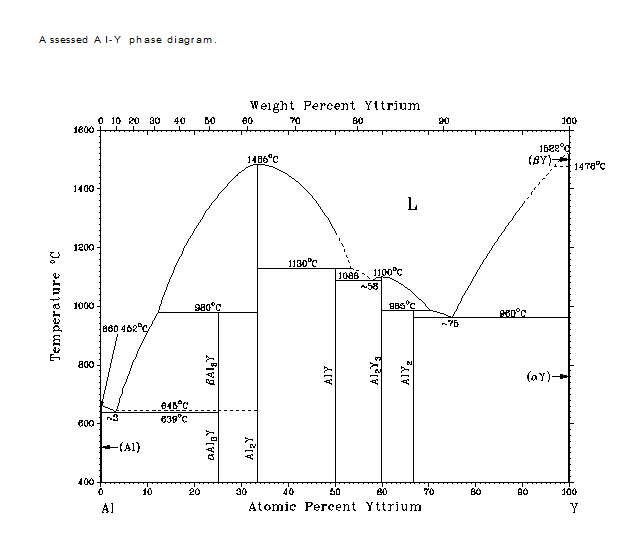

Yttrium Aluminum (YAl) Alloy Sputtering Targets phase diagram

YAl_phase
