Nickel
Chromium alloy (NiCr Alloy) |
|
Nickel
chromium alloy ( Nichrome ) is usually be alloy in Ni80wt% and Cr20wt%,
silvery white, melting point about 2550 degree. It belong to high temperature
alloy. Nichrome is a good corrosion
resistance alloy material, when
be oxide, the Chromium can be oxide and form an compact chromium oxide thin
film in order to prevent to oxide again. Nichrome can be used
many fields. For examples, nichrome wire, and nichrome trip/net can
be used in heat element. Nichrome thin film can be used corrosion reistance...
Nickel
chromium also can be allou in Ni 60wt% and Cr 40wt%, the applications are
developping. |
|
 Nickel

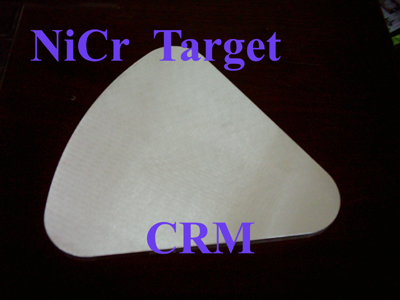

Chromium alloy Sputtering Target ( NiCr Target )
Purity---Ni-Cr
80/20, 99%,99.5%,99.8%,99.9%,99.95%,99.99%
Shape---
Discs,
Plate,Step,Taper (Dia
¡Ü300mm,,
Thickness ¡Ý1mm)
Rectangle, Sheet, Step (Length
¡Ü1000mm,
Width ¡Ü300mm, Thickness ¡Ý1mm)
Tube( Diameter< 300mm, Thickness >2mm, rotary
target)
Application
--- Thin film resistors. Good adherence on non-metals. Good corrosion
resistance. |
 Nickel

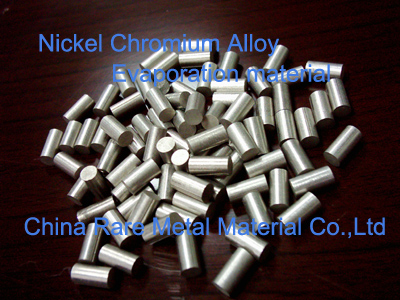

Chromium Alloy Evaporation material
Purity ---
99.9%,99.95%,99.99% Density --- 7.96-8.48g/cm~3
Shape
--- Wire, Cylinder, Pellet, Taper
Application
--- Thin film resistors. Good adherence on non-metals. Good corrosion
resistance. |
|
Nickel
Chromium Alloy Product (
NiCr alloy tube, wire, rod, foil, slab, disk, granule, Lump... )
Purity ---
Ni-Cr 80/20 99.9%,99.95%,99.99%
Speciafication
--- Wire
(diameter
0.1mm - 2mm), Rod
(diameter2mm
- 120mm ),Foil
(thickness to 0.25mm - 1.0mm, width < 30cm)
Slab (thickness
1cm - 30mm, width < 400mm), Disc
(diameter
< 35cm, thickness 0.1mm - 30mm ) |
|
Nickel
Chromium Thermal Spraying Powder ( NiCr alloy Powder ) --- Metco43
Purity ---
Ni-Cr 80/20 99.9%
Speciafication
--- 300mesh |
|
Nickel
Chromium Alloy Powder ( NiCr alloy
Powder )
Purity ---
Ni-Cr 50/50 99.9%
Speciafication
--- 300mesh |
|
Nickel
Chromium Alloy Ingot ( NiCr Ingot )
Purity
--- Ni-Cr
80/20
Shape
--- Ingot |
|
