Magnesium Oxide (MgO)

Base Information

Boiling Point 760 mm Hg:3600 ^oC

Melting Point:2852 ^oC

Specific Gravity:3.60

Appearance and Odor:White to gray powder, odorless

Solubility in H₂O:Slightly (<0.1%)

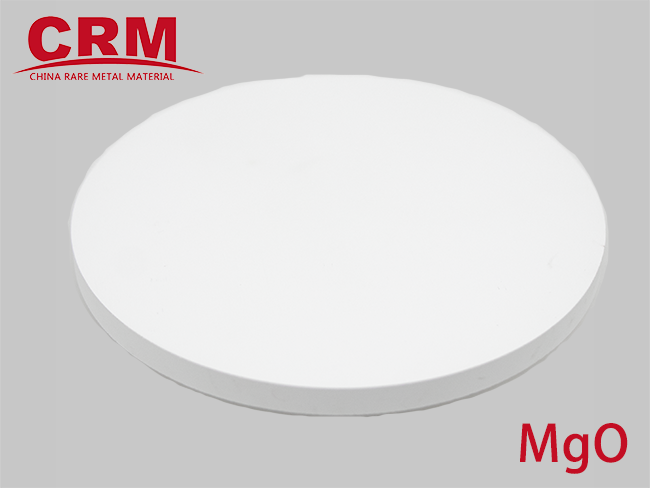

Magnesium Oxide Target

Purity--- 99.99%

Shape --- Discs, Plate,Step (Dia ≤300mm,,  Thickness ≥1mm)

                 Rectangle, Sheet, Step (Length ≤300mm, Width ≤300mm, Thickness ≥1mm)

Magnesium Oxide Evaporation Material
Melting point--- 2800℃,Vapour pressure at 1700℃ 1Pa,at 1900℃ 10Pa,

Purity--- 99.99%      Density--- ～3.58 g/cm³ , Solubility soluble in acid
Linear expansion coefficient ---11.2×10-6/K(300K)
Specific heat capacity--- 0.209 Cal/g.K(273K)
Hardness--- (acc. to Mohs) 5.5, (acc. to Knoop) 692 g/mm²
Properties of thin film---
     Transmission range 200～8000nm
     Refractive index at 550nm 1.73, at 1014nm 1.72,  at 2325nm 1.70, at 5138nm 1.63
Hints on evaporation---
     Evaporation with electron beam gun.
     Evaporation pressure 5×10^-3Pa
Shape---solid substance, White tablets

Shape--- disk, sheet, tube, step, taper    Purity --- 99.99%

Diameter --- 30-300mm     Length --- 300mm       Width: 300mm

Thickness --- 0.5-100mm

Purity ---99.5%,99.9%, 99.99%

Diameter --- 325mesh or other

Appearance --- White powder     Purity --- ≥99.9%

Average grain size (nm) --- 40

Specific surface area (m²/g) --- ≥50

Loss of weight in drying  --- ≤0.5

Loss of weight in burning (%) --- ≤0.2

Appearance --- White powder   Purity --- ≥99%

Average grain size --- 100nm

Specific surface area (m²/g) --- ≥7.3

Loss of weight in drying --- ≤0.3

Loss of weight in burning (%) --- ≤0.1

Application --- Nano magnesium oxide is white, odourless, and non-toxic. Due to its unique property, it is widely used in electronic, catalytic, ceramic, oil product, coating and other fields. In the textile field, with the ever-growing demands for high-performance fire-retardant fibre, the synthesis of a new-type and high-performance fire retarding agent will provide an ideal material for the development of a functional fabric. Nanomagnesium oxide is usually used, together with wood chips and wood shavings, to make refractory materials, such as light-weight, sound-proof, heat-insulating and refractory fiber board and metallic ceramics. As compared with some traditional phosphorus or halogen-containing organic fire retarding agent, nanomagnesium oxide is non-toxic, odourless and less in quantity to be added, therefore it is an ideal additive for developing fire-retarding fibre. Moreover, when it is used in fuel, nanomagnesium oxide has a strong ability to clean and inhibit corrosion, therefore it has good prospect of application in coating.
