   Indium Doped Tin Oxide (ITO)

China Rare Metal Material Co.,Limited supply ITO material for many years. Indium oxide doped with tin oxide, ITO, is used to make transparent conductive coatings which will be used for plane indicator such as LCD, ELD, and ECD. It can also be used for making refrigerator door glass, electron-shield glass, high building window glass, car, train, and plane windshield glass, etc. Thin film layers can be deposited by electron-beam evaporation or magnetic sputtering.

CRM supply ITO  powder, it can be used for spray coating or  manufacturing sputtering target.

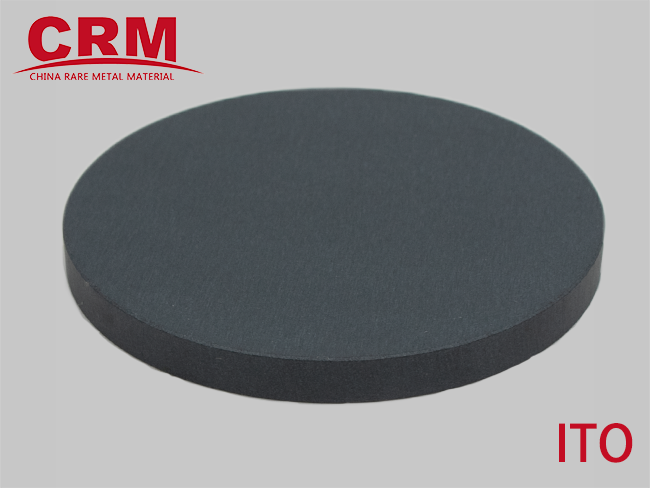

Indium Doped Tin Oxide (ITO) Sputtering Targets

Purity--->99.99% , In2O3+SnO2  90:10  95:5  Density---7.15g/cm3

Shape--- Discs, Rectangle, Step, Circle, Tube,  Custom-Made

Diameter--- Dia (250mm),

Length---(600mm), Width---(250mm) Thickness---(1mm)

Application---ITO-coated substrates including electrodes for flat panel displays, touch panel
contacts, energy saving automobile and building window glass, optoelectronic devices, solar panels and etc.
****** CRM can recycle used ITO targe t******
Relation products:
ATO spttering target, AZO sputtering target, GZO sputtering target, ZnO sputering target , InSn alloy sputtering target, SiO2 sputtering target, TiO2 sputtering target

Indium Oxide +Tin Oxide (ITO) Evaporation Material
Purity---99.99%   In2O3+SnO2  90:10st%  95:5wt%

Shape---3-12 mm sintered pieces£¬custom-made,  Melt Point---1565℃

Refractive Index---2    Transparence Wave Band ---0.34-9um

Evaporation Temperature ---about 600 ¡ã C

Oxygen Partial Pressure --- Near 5 x 10-5 Torr. Range

Substrate Temperature --- about 300 oC

Rate ---  2 Å/sec

Applications--- ITO-coated substrates including electrodes for flat panel displays, touch panel
contacts, energy saving automobile and building window glass, optoelectronic devices, solar panels and etc

Indium Oxide +Tin Oxide (ITO) Powder

Purity---99.99% , In2O3+SnO2  9:1 95:5

Shape---yellow or aqua Powder

Granularity--- 0.1-10um(micrometer grade)

Indium Oxide +Tin Oxide (ITO) Nanometer Powder

Purity---99.99% , In2O3+SnO2  9:1 95:5

Shape---yellow or aqua Powder

Granularity---30-70nm
